Buy F800HL High Pressure Mud pump Manufacturers, Factory

The F800HL is well suited for drilling contractors who require reliable mud circulation in deep and challenging wells where higher pump pressure is critical but engine power availability is limited. It provides operators with the ability to handle demanding drilling programs efficiently, making it an ideal choice for both domestic and international markets where rigs are upgrading to meet more complex well conditions.

Send Inquiry

Product Description

📋

Product Specifications

Chinese Model	F800HL
Rated Input Power	800 HP (590 kW)
Working pressures	7000 PSI (48.3 MPa)
Rated Strokes per Minute	150 SPM
Stroke Length	228.6 mm (9 in)
Maximum Liner Bore Diameter	170 mm (6 3/4 in)
Gear Ratio	4.185:1
Extension of Pinion Shaft (D × L)	177.8 × 324 mm
Suction Inlet	10" Flange
Discharge Outlet	5 1/8" Flange, 7000 PSI
Temperature rating	-20°C to 50°C
Service life	With regular maintenance, the service life of the pump frame can exceed 30,000 working hours, while the overall unit can remain in service for 8–10 years.
Standard	Conforms to API 7K standards
Application	Drilling rig
Compatible model of overseas mud pump	All mud pumps rated for a working pressure of 7,000 PSI.
Applicable Fluids	Designed to operate with both water-based, oil-based and highly corrosive drilling fluids commonly used in oilfield drilling operations
Third party witness and inspection	Bureau Veritas (BV), CCS, ABS, SJS etc.

💎

Product Features

✓

Designed with the technical framework of the F1600HL high pressure mud pump, ensuring structural strength and stability under continuous high pressure.

✓

Capable of achieving 7000 PSI in a pump size traditionally limited to 35 MPa, setting a new performance benchmark in the F800 model.

✓

Optimized displacement of 38.9 L/s offers a balance between flow capacity and pressure for various drilling operations.

✓

Provides operators with a cost-effective solution by delivering high pressure without the need for a larger horsepower pump.

✓

Fills a market gap with a unique product that enhances drilling efficiency while maintaining compatibility with existing rig systems.

📊

Displacement and Pressure Specifications

Liner bore (MM)	Φ170	Φ160	Φ150	Φ140	Φ130	Φ120	Φ110	Φ100	Φ90
Displacement (L/S)	38.9	34.4	30.5	26.4	22.7	19.4	16.3	13.5	11
Pressure rating MPa (kgf/cm²)	13.5 (138)	15.3 (156)	17.4 (178)	20.0 (204)	23.2 (257)	27.2 (278)	32.4 (317.5)	39.2 (384)	48.4 (474)

The F800HL mud pump is an advanced development derived from the conventional F800 model, designed to address the gap in the market for high-pressure pumps in the mid-power range. While standard F800 pumps typically deliver 35 MPa, this new model draws on the proven design concept of the other high pressure mud pump to achieve a maximum working pressure of 7000 PSI with a displacement of 38.9 L/s. This makes it the first of its kind in the industry, combining compact horsepower with exceptional pressure performance.

📸

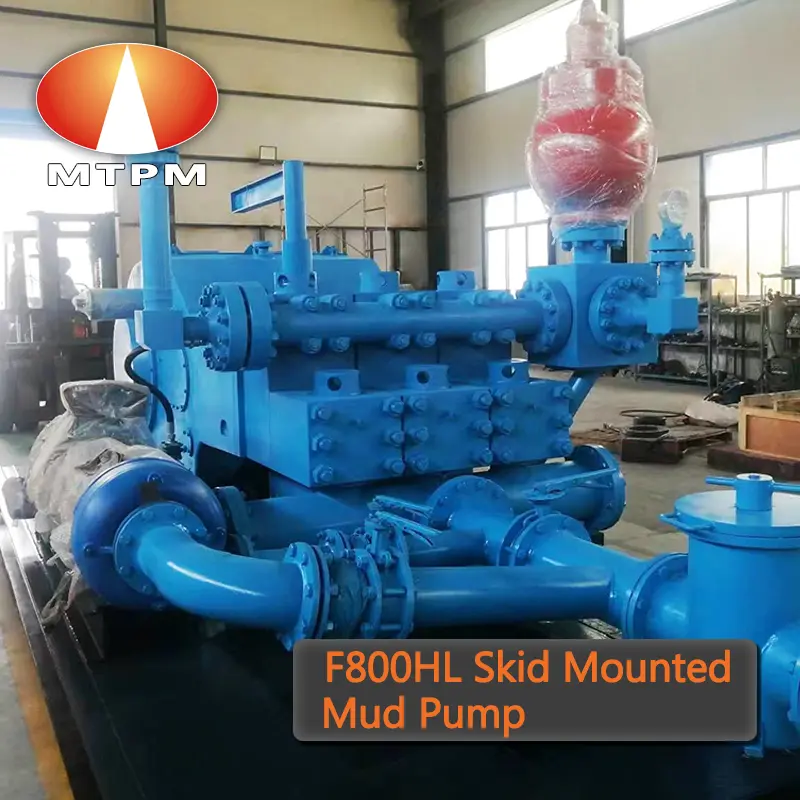

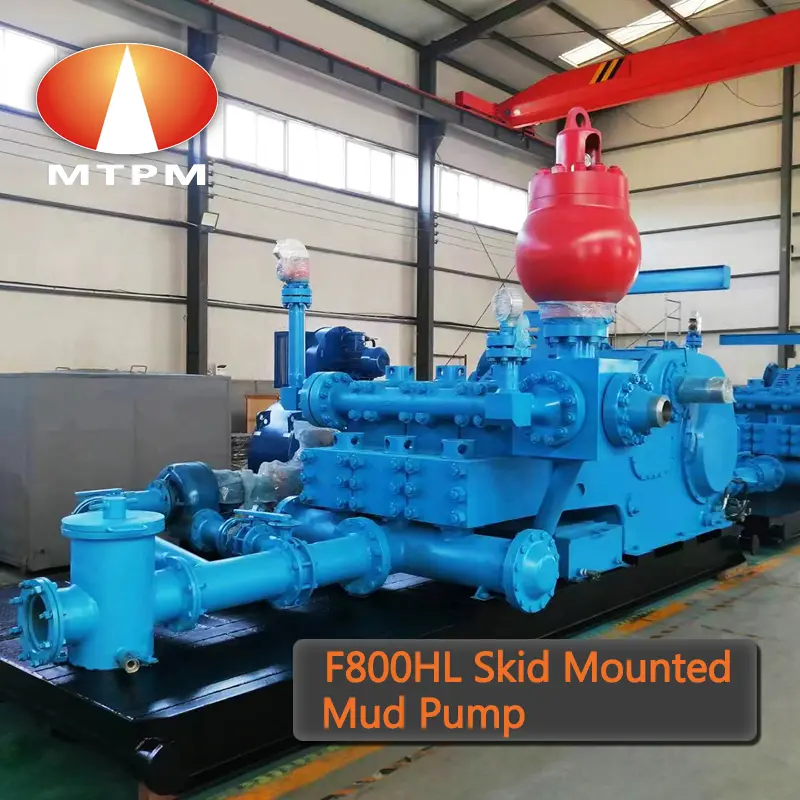

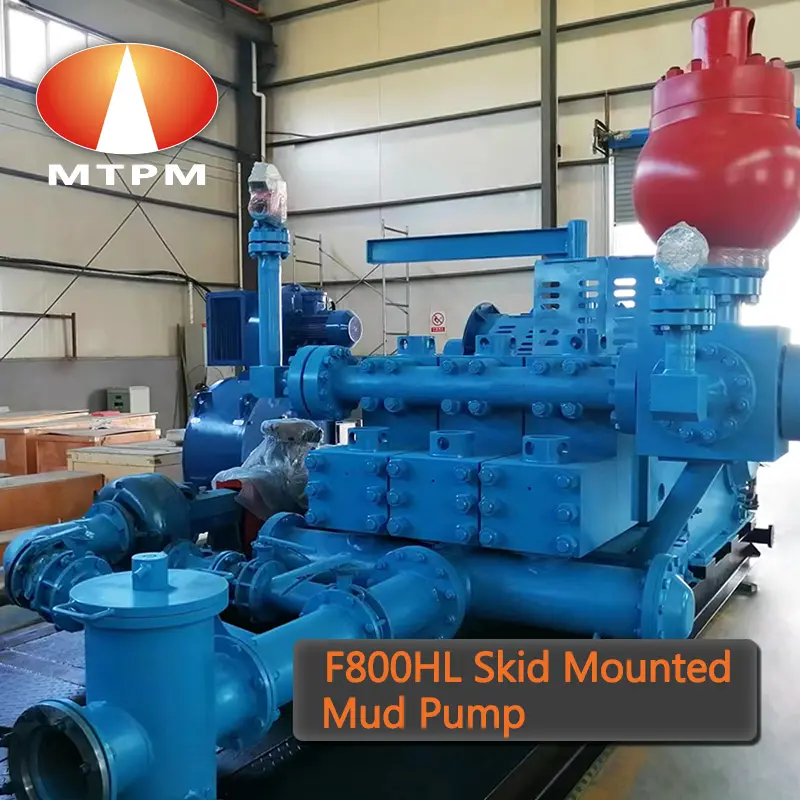

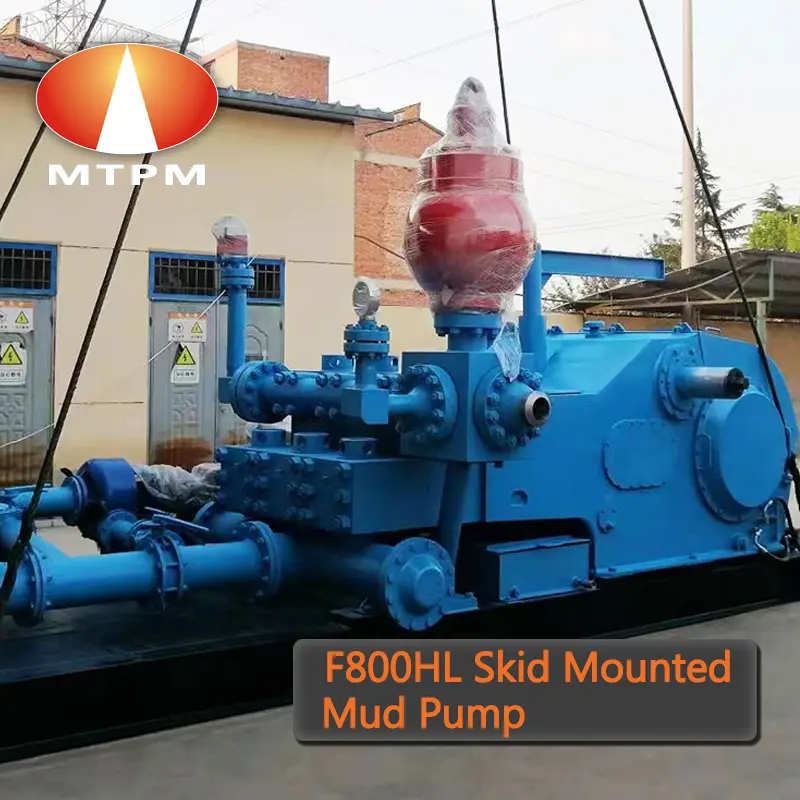

Product Gallery

All product names, trademarks, and part numbers are used for identification purposes only and are the property of their respective owners. As an authorized and recognized supplier, we provide full technical support for specific component part numbers.

❓

Frequently Asked Questions

1. What is the maximum working pressure of the F800HL mud pump?

The F800HL is designed to reach a maximum working pressure of 7000 PSI (48.3 MPa), which sets a new performance benchmark for the F800 series.

2. Does the pump comply with international oilfield standards?

Yes, the F800HL mud pump fully conforms to API 7K standards, ensuring reliability and safety for oilfield drilling operations.

3. What types of drilling fluids can the F800HL handle?

The pump is engineered to operate with water-based, oil-based, and highly corrosive drilling fluids commonly used in professional drilling environments.

4. What is the expected service life of this equipment?

With regular maintenance, the pump frame's service life can exceed 30,000 working hours, and the complete unit typically remains in service for 8 to 10 years.

5. Can I request a third-party inspection for this pump?

Absolutely. Third-party witness and inspection reports are available from recognized organizations such as Bureau Veritas (BV), CCS, ABS, and SJS.

6. How does the F800HL improve drilling efficiency?

By providing high-pressure performance (7000 PSI) in a mid-power range pump, it offers a cost-effective solution that eliminates the need for larger, more expensive horsepower units while maintaining compatibility with existing rig systems.
