| Chinese Model | WY75-52, KB45H |
| Compatible Overseas Mud Pump | K20 7500PSI |
| Working Pressures | 7500PSI (51.7MPa) |
| Temperature Rating | -20°C to 180°C |
| Housing Material | ZG35CrMo (AISI 4135 or AISI 4140) |
| Bladder Material | Hydrogenated Nitrile (HNBR) |
| Service Life | 6,000 to 10,000 operating hours under normal drilling conditions |
| Standard | Conforms to API 7K standards |
| Application | Drilling mud pump |
| Compatible Chinese Mud Pump | BOMCO F1600HL, HH F1600HL, HH NB1600HL, RGF1600HL |
| Applicable Fluids | Water-based, oil-based, and highly corrosive drilling fluids |
| Third Party Inspection | Bureau Veritas (BV), CCS, ABS, SJS etc. available |
| OEM Brand | Pump Models | Compatible Part Numbers |
|---|---|---|
| BOMCO | F1600HL | AK75520100 |
| BOMCO | F2200HL | AK45520100 |

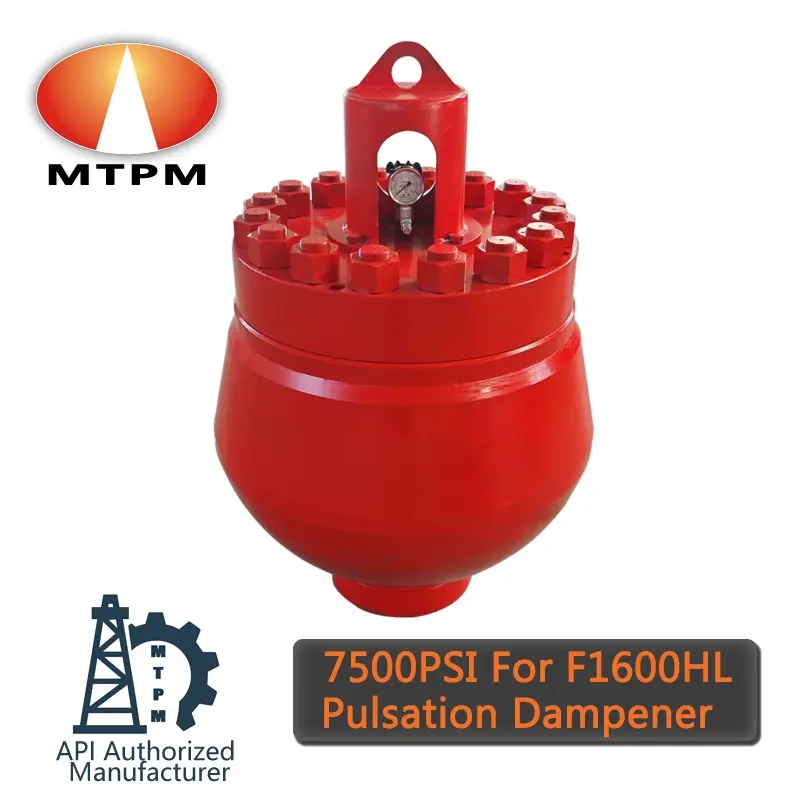

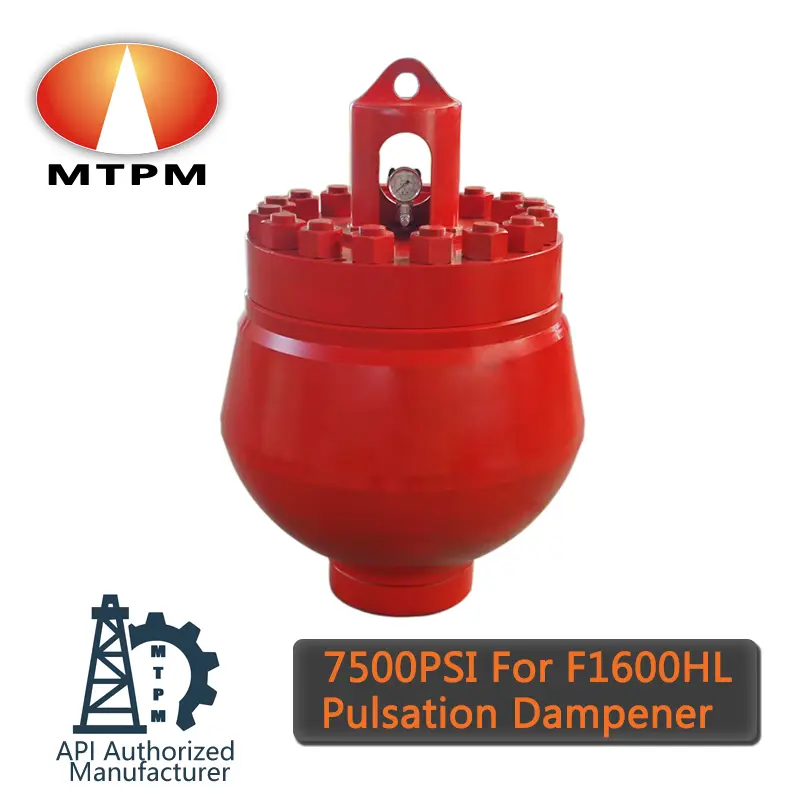

This pulsation dampener is designed for mud pumps operating at a high working pressure of 7,500 PSI. The main body is made from high-strength forged steel to ensure pressure resistance and structural stability under continuous operation. The internal bladder is made of HNBR, providing reliable performance in high temperature and oil-based drilling environments.

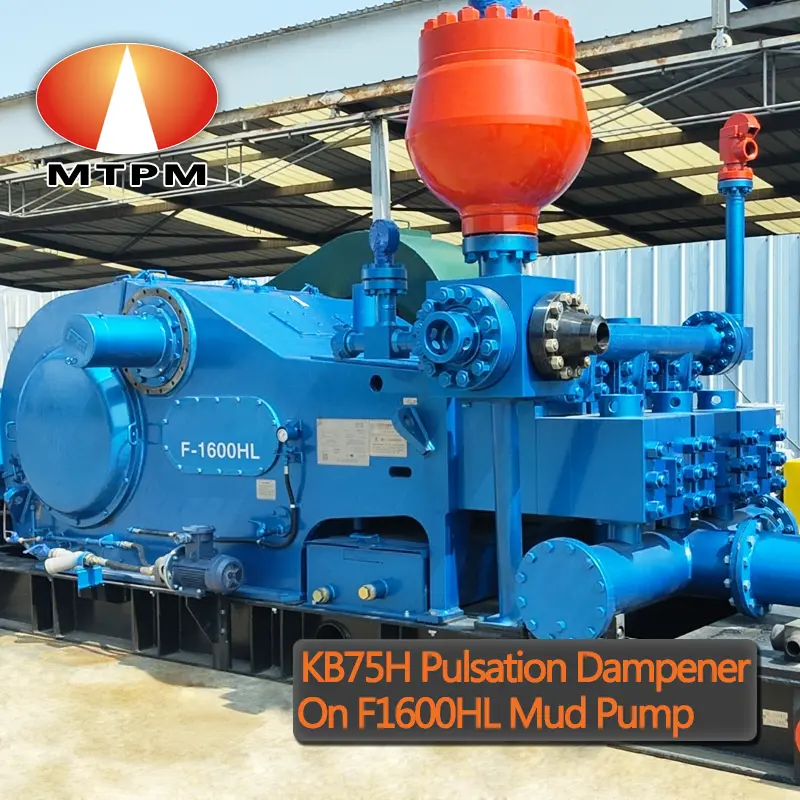

It is compatible with all F-series mud pumps commonly produced by the mainly Chinese drilling equipment factory. It also can be used as a direct replacement for the K20 7500PSI model, offering equivalent performance and technical specifications.
All product names, trademarks, and part numbers are used for identification purposes only and are the property of their respective owners. We are an authorized and recognized supplier.
