Buy MT-JC Series Drawworks for Drilling Rig Heavy-Duty Hoisting System Factories, Factory

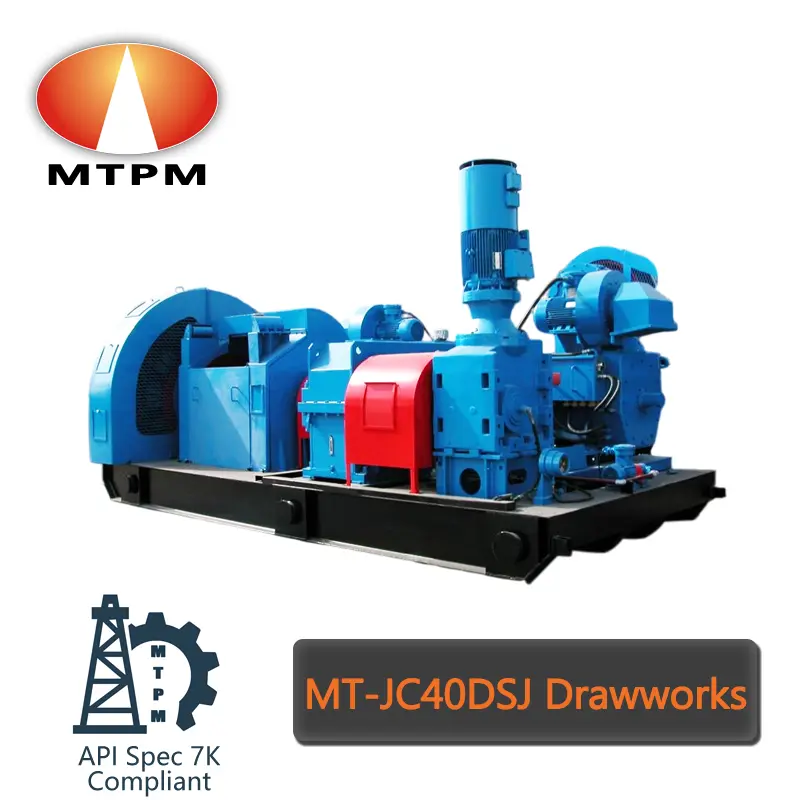

The drawworks is the primary hoisting machine on a drilling rig, responsible for controlling the raising and lowering of the drill string and casing during drilling and tripping operations. The MT-JCseries drawworks is engineered to deliver powerful torque output, precise speed control, and dependable braking capability under heavy loads. Built with alloy steel shafts, roller bearings, and a high-strength transmission system, it ensures reliable operation in both land and offshore drilling environments. With advanced design features and strict quality control, the MTPM drawworks provides contractors with a durable, efficient, and safe hoisting solution tailored to the needs of modern drilling rigs.

Send Inquiry

Product Description

Product Specifications

Conventional Double-shaft Drawworks

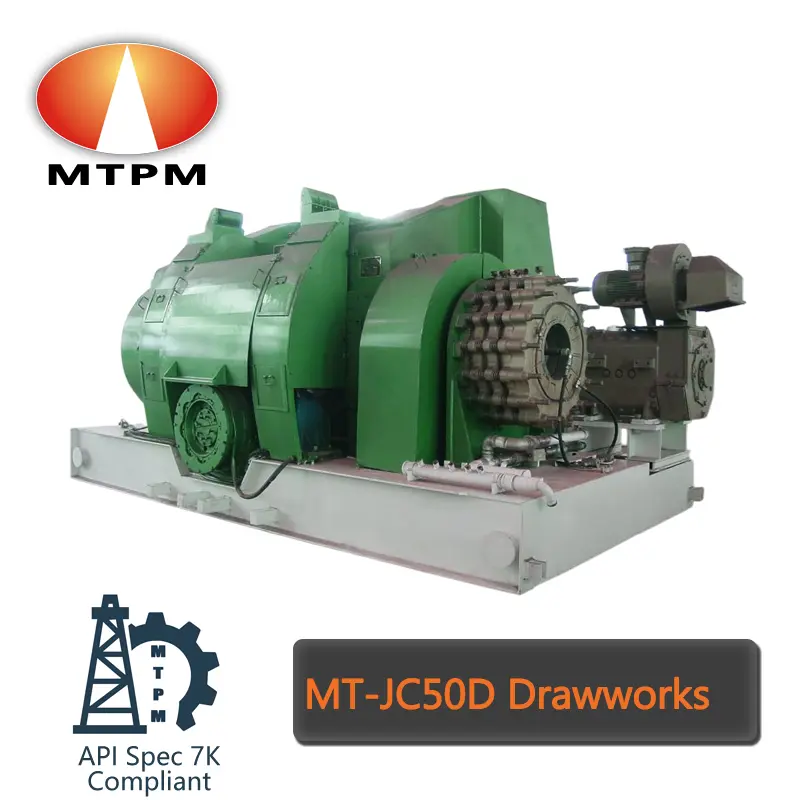

Model	JC30B	JC40B	JC50B	JC50D	JC70B	JC70D
Max input power (kW)	440	735	1100	1100	1470	1470
Max fast line tension (kN)	210	280	350	350	487	487
Dia. of drilling wire rope (mm)	29	32	35	35	38	38
Drum size (Dia. x Width) (mm)	560x1304	640x1208	685x1160	770x1310	770x1310	770x1310
Bailing drum size (Dia. x Width) (mm)	–	–	–	400x1320	–	400x1460
Bailing drum capacity (m)	–	–	–	5000	–	7000
Lifting shift	4F	4F+2R	4F(6F)+2R	4F+4R	4F(6F)+2R	4F+4R
Auxiliary brake	FDWS40	FDWS40	FDWS50	FDWS50	FDWS70	FDWS70
Dimensions (LxWxH) (mm)	6000x2850x2380	6300x2628x2699	6760x2565x2881	7190x4335x3216	7100x2920x2945	7370x4335x3216
Weight (Kgs)	27300	28000	34203	49600	46050	55809

Compact Single-shaft Drawworks

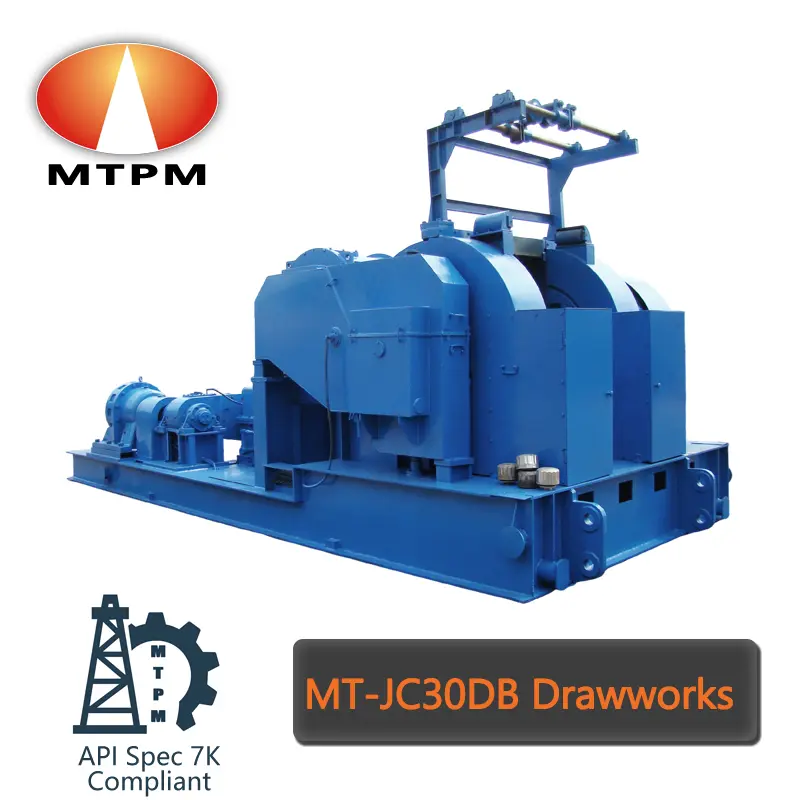

Model	JC30DB	JC30DB	JC40DB	JC50DB	JC70DB
Max input power (kW)	600	1100	800	1100	1470
Max fast line tension (kN)	210	350	280	350	450
Dia. of drilling wire rope (mm)	29	35	32	35	38
Drum size (Dia. x Width) (mm)	500×1000	770×1310	644×1208	770×1310	770×1434
Auxiliary brake	Dynamic Braking	Dynamic Braking	Eddy current brake	Dynamic Braking	Dynamic Braking
Dimensions (LxWxH) (mm)	4700×2800×2552	6530×3192×2680	7000×3695×3010	6530×3192×2680	7920×3050×2680
Weight (Kgs)	19600	36000	39125	36000	46500

Third party witness and inspection available: BV, CCS, ABS, SJS etc.

Compliance and Reliability

Every unit is manufactured in line with international oilfield equipment standards (API 7K) and is subject to strict inspection procedures to guarantee safety and performance. The drum is precision-grooved to ensure smooth spooling of the drilling line, while the low speed and high speed ends of the shaft are equipped with ventilated pneumatic clutches for efficient torque transmission.

A water-cooled brake rim, treated with medium frequency induction hardening, offers extended durability and stable braking performance under continuous heavy-duty cycles. Transmission sprockets also undergo surface hardening to resist wear, further enhancing reliability during prolonged operation. These features enable the drawworks to meet the demanding requirements of deep drilling and high-load hoisting operations.

Product Features

✓

Forced lubrication for the chain drive and involute spline-type transmission clutches, reducing wear and extending service life.

✓

Customizable main brake system with either a band brake or a disc brake, depending on rig requirements.

✓

Advanced auxiliary braking options including eddy current brakes or Eaton water-cooled dynamic brakes for safe extended tripping.

✓

Reliable stopping power, reduced heat build-up, and safe operation even under extreme loads.

Product Details

Frequently Asked Questions

What manufacturing standards do these drawworks follow?

All units are manufactured in strict accordance with the API 7K international oilfield equipment standards to ensure high quality and operational safety.

What types of brake systems are available?

The main brake can be configured as a band brake or a disc brake. Auxiliary braking options include eddy current brakes or Eaton water-cooled dynamic brakes.

How is the lubrication system designed?

The drawworks incorporates a forced lubrication system specifically for the chain drive and transmission clutches to minimize wear during heavy-duty operations.

Are third-party inspections supported?

Yes, we provide witness and inspection reports from recognized third-party authorities such as BV, CCS, ABS, and SJS.

What ensures the durability of the transmission components?

The transmission sprockets and brake rims undergo medium frequency induction hardening and surface hardening to resist wear and handle continuous heavy-duty cycles.

Can these drawworks be used for deep drilling?

Yes, with high input power capacities and advanced braking systems, they are specifically designed to meet the demanding requirements of deep drilling and high-load hoisting.
