Product Specifications
| Product name: |

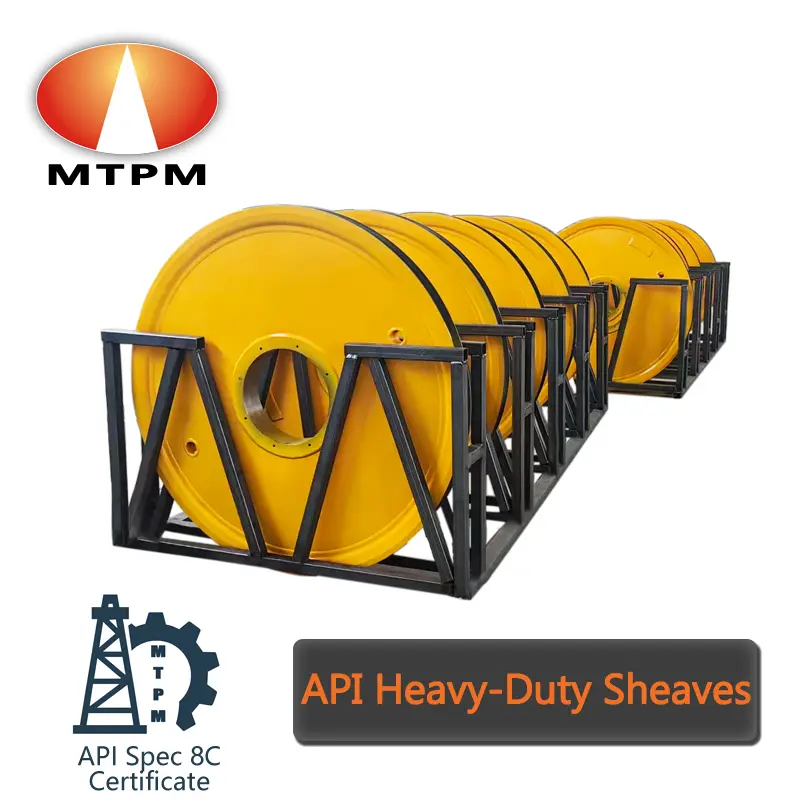

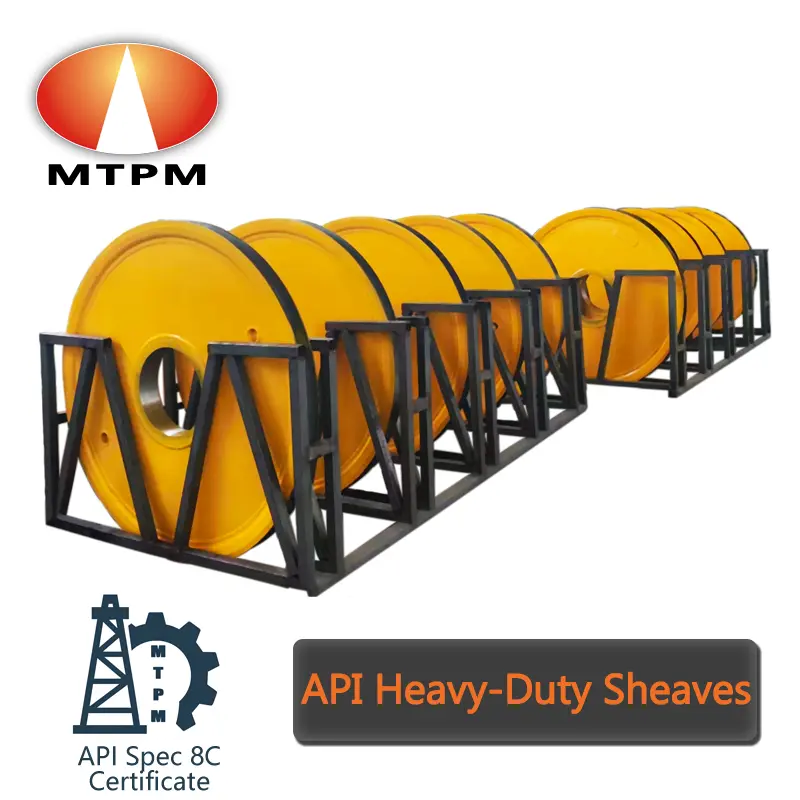

heavy duty Sheave |
| Application: |
Used in Crown block, Traveling Blocks and Hook Blocks, Mast and derrick |
| Sheave OD: |
1524 mm (60 inches) |
| Groove diameter: |
32mm |
| Maximum Rope Diameter: |
26 mm |
| Bearing Type: |
Tapered roller bearing with double-sealed protection |
| This flexibility allows our products to be adapted to rig models from 1000 HP to 3000 HP. |
| Material: |
42CrMo forged steel |
| Temperature rating: |
-40°C to 120°C |
| Service life: |
8~10 years under normal drilling conditions, with periodic bearing and groove maintenance as required. |
| Standard: |
Produced under API 8C |
| Third party witness and inspection report available: |
Bureau Veritas (BV), CCS, ABS, SJS etc. |
Product Features
✓
Each MTPM sheave is produced to sustain the mechanical stress of continuous drilling operations.
✓
The forged steel sheave body minimizes material fatigue while ensuring uniform strength distribution across the equipment.
✓
The optimized groove geometry provides steady rope guidance, reducing friction and extending wireline service life.
✓
Precision machined sheaves hole allow smooth rotation under heavy load, while the sealed bearing housing effectively prevents contamination from mud and dust.
✓
The surface coating system delivers durable corrosion protection, retaining its structural integrity and color stability even after prolonged field exposure.
As a source manufacturer, we supply sheaves fully compatible with major OEM equipment from BOMCO, LS NOV, Honghua, RG and other well-known drilling equipment brands. Customers can expect high interchangeability, strict compliance with API 8C requirements, and production traceability from raw material to final inspection.
All product names, trademarks, and part numbers are used for identification purposes only and are the property of their respective owners. We are an authorized and recognized supplier.
Frequently Asked Questions (FAQ)
Q1: What material is used for the heavy duty sheave?
A: The sheaves are manufactured using high-quality 42CrMo forged steel to ensure maximum strength and durability.
Q2: What is the expected service life of these sheaves?
A: Under normal drilling conditions and with proper periodic maintenance of bearings and grooves, the service life is approximately 8 to 10 years.
Q3: Are these sheaves compliant with international standards?
A: Yes, all sheaves are produced in strict accordance with the API 8C standard for drilling and production hoisting equipment.
Q4: Can these sheaves withstand extreme temperatures?
A: Yes, they are rated for a temperature range of -40°C to 120°C, making them suitable for various environmental conditions.
Q5: What type of bearings are used in the assembly?
A: We use tapered roller bearings equipped with double-sealed protection to prevent contamination and ensure smooth rotation under heavy loads.
Q6: Is third-party inspection available for these products?
A: Yes, inspection reports from recognized third parties such as Bureau Veritas (BV), CCS, ABS, and SJS are available upon request.
